試料迅速乾燥機 TG 200

お見積りは無料です!

各商品の「注文データ&見積依頼」のタブを開いて、お見積りご希望の商品にマークを入れると、見積カートに商品が入ります。商品右欄にマークをいれ、カートに入れると見積依頼リスト作成画面に進みます。コンタクトフォームに必要事項をご記入いただき送信すると、弊社担当者から折り返しお見積りをお送りいたします。

お問い合わせ

必要なアイテムがわからない、または一般的な見積もりを希望する場合は、こちらをご覧ください。

試料迅速乾燥機 TG 200

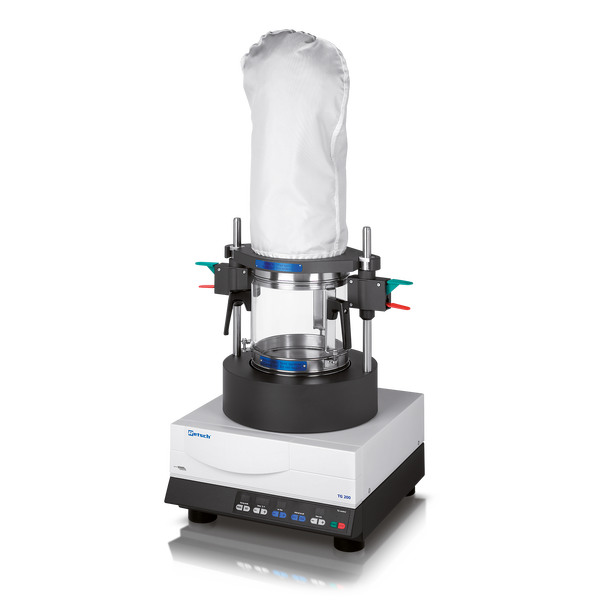

Fluid Bed Dryer TG 200 incl. clamping lid “comfort” with filter bag
(please order drying container separately)
70.760.0001
TG 200200–240 V, 50/60 Hz

ドライングチャンバー TG 200

選択のガイド
選択のガイド
The fluid bed dryer TG 200 can be equipped with a variety of containers and covers.

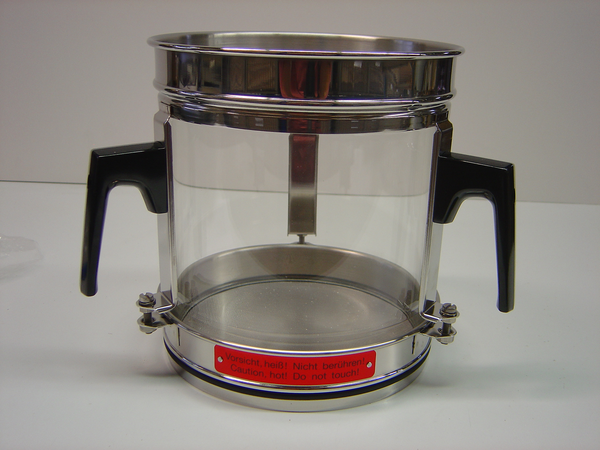

The 6 l drying container of glass or stainless steel is used for drying large sample amounts. The glass container allows visual control of the dispersion degree of the sample, during the drying process. Thus, the operator can directly adjust the air flow if necessary.

The glass drying container with 3 x 0.3 l volume is equipped with 3 removable glasses. It permits the simultaneous drying of three samples, also of different materials, under the same conditions. This helps to avoid cross contamination.

Container lids with filter fleece inserts are available as optional accessories for both containers. These can be easily exchanged after each drying process to avoid cross contamination. The filter fleece is mainly used for samples with a particle size below 100 μm. It allows for sample recovery with minimal loss.

Please note: The TG 200 is only suitable for drying samples with a particle size >63 µm.
72.783.0001チャンバー ガラス製, 6 L

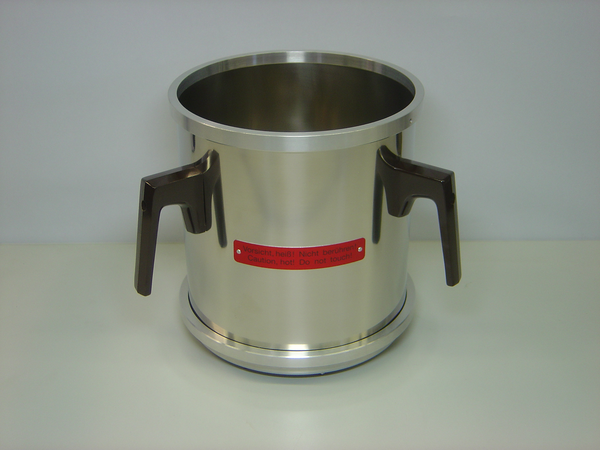

72.783.0002チャンバー ステンレス製, 6 L
72.002.0005Drying container of glass, 3 x 0.3 litres (incl. intermediate ring, holder and filter bags)


TG 200 用アクセサリ

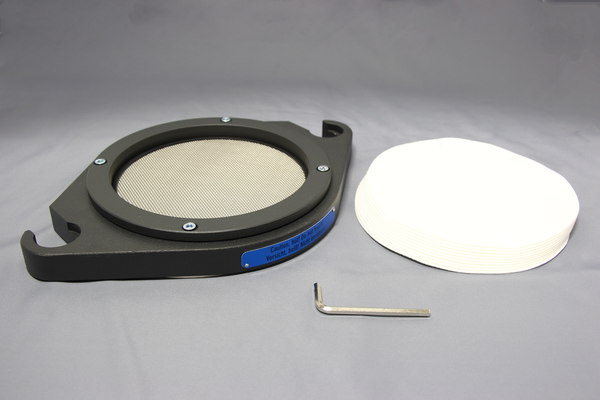

72.643.0001クランピングカバー メッシュフィルタ 10 枚付
72.143.0001メッシュフィルタ 10 枚組
72.107.0002クランピングカバー フィルタバッグ付
02.186.0015フィルタバッグ 6 Lドライングチャンバー用

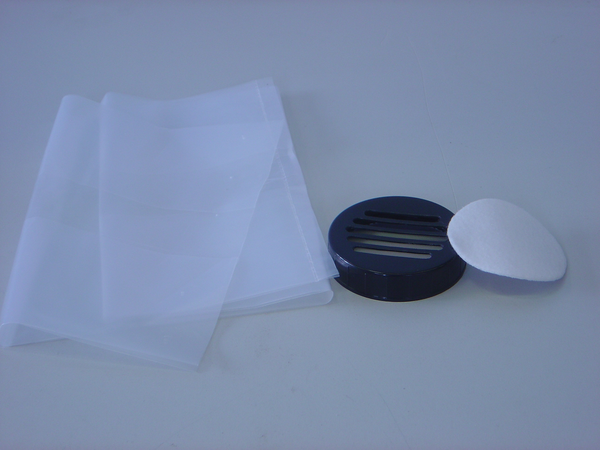

72.107.0001TG200/100用 フィルタカバー 3個組 メッシュフィルタ付

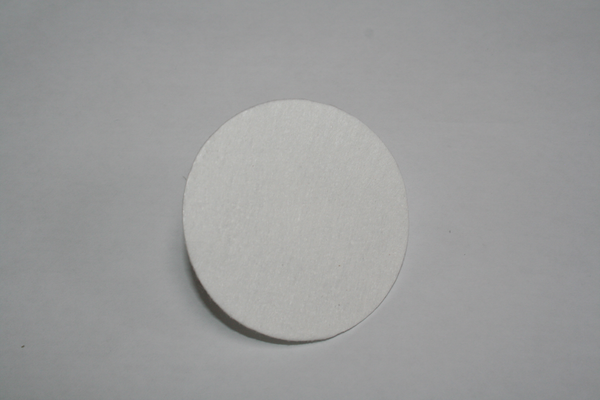

03.186.0024メッシュフィルタ 1 枚

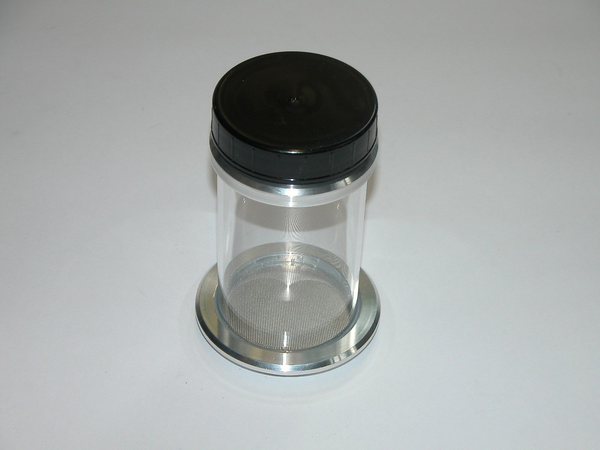

02.045.0020300 mL ドライングチャンバーのみ ガラス製
02.186.0004フィルタバッグ 300 mL ドライングチャンバー用
72.001.0005試験ふるい(203mmΦ)乾燥用アダプタ
72.143.0003ダストフィルタ(ブロア用)10枚組

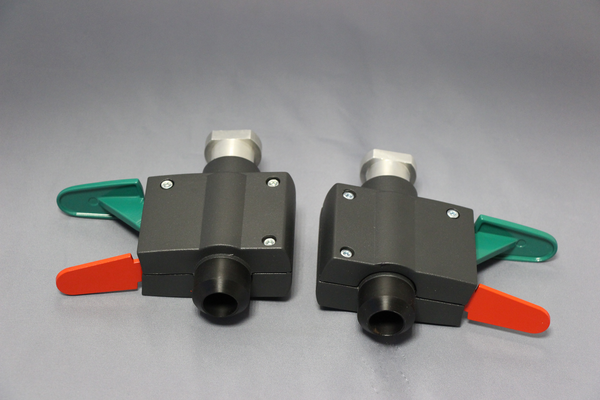

72.737.0003クイックアクションクランプ TG 200 用, 2 個組
72.742.0001支柱 TG 200 用 2本組
99.200.0018IQ/OQ 検査書 TG 200

Further information
