カッティングミル SM 300

お見積りは無料です!

各商品の「注文データ&見積依頼」のタブを開いて、お見積りご希望の商品にマークを入れると、見積カートに商品が入ります。商品右欄にマークをいれ、カートに入れると見積依頼リスト作成画面に進みます。コンタクトフォームに必要事項をご記入いただき送信すると、弊社担当者から折り返しお見積りをお送りいたします。

お問い合わせ

必要なアイテムがわからない、または一般的な見積もりを希望する場合は、こちらをご覧ください。

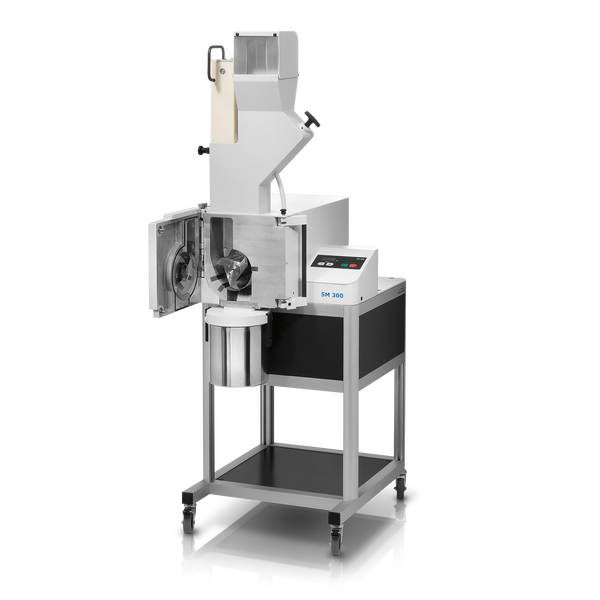

カッティングミル SM 300

Cutting Mill SM 300 complete with collecting receptacle, 5 litres and base frame with wheels
(please order rotor, hopper and bottom sieve separately)
20.729.0002
SM 300220–230 V, 50/60 Hz, 回転数調整用周波数変換器付き
20.729.0008
SM 300220–230 V, 50/60 Hz, with frequency converter for variable speed,
ステンレス製ハウジング
20.729.0005
SM 300220–230 V, 50/60 Hz, with frequency converter for variable speed,
重金属コンタミ防止用
他の電源仕様については応相談

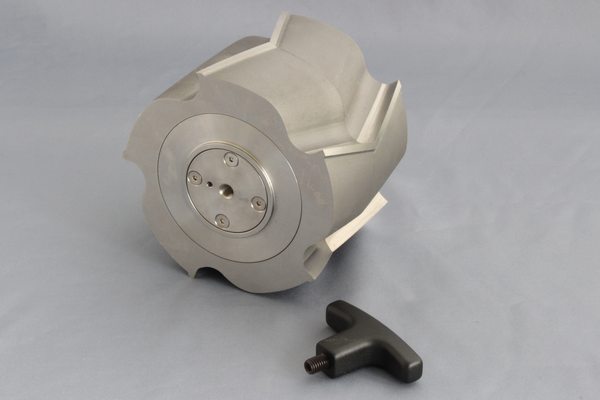

Rotors SM 100, SM 200, SM 300

選択のガイド
選択のガイド
ロータータイプ:

     交換可能で可逆的なタングステンカーバイドプレートを備えた6ディスクローター:
     シュレッダーのように機能します。 特に中硬度の材料に適しています

     セクションローター:
     ハサミのように機能します。 柔らかく、弾性があり、繊維状の材料に特に適しています

     Vローター(SM 300のみ):
     ハサミのように機能します。 柔らかく、繊維状の材料、研削効率の向上が見込めます

利用可能な材料:

     ステンレス鋼:
     ほとんどのアプリケーションに適しています

     スチール1.0580:
     重金属の摩耗が問題になる場合に適しています。 例えば、 重金属含有量を分析する場合

     重金属を含まない研削ツールは、重金属含有量を分析するサンプルを準備するために特別に設計されています。 ただし、研削工具の摩耗を完全に回避することはできません。
22.608.00226-disc rotor, stainless steel, with reversible cutting tips of tungsten carbide
22.608.00286-disc rotor, steel 1.0580, with reversible cutting tips of tungsten carbide, for grinding without heavy-metal contamination
22.608.0021Parallel section rotor, stainless steel
22.608.0018Parallel section rotor, steel 1.0580, for grinding without heavy-metal contamination
22.608.0034V-rotor, stainless steel
SM 300用


ホッパー

選択のガイド
選択のガイド
利用可能なホッパー:

     標準ホッパー-標準アプリケーション
     サンプルはプランジャーでローターに押し付けられるため、非常に優れた研削効率が得られます。

     ロングタイプホッパー-小枝のような長いサンプルの処理に最適
     トウモロコシのようなさらさらしたサンプルにも適しています。
22.785.0001標準タイプホッパー プラスチック製プランジャー付き
SM 200 / SM 300用
22.408.0003ロングタイプホッパー 木製プランジャー付
SM 200 / SM 300用


プランジャー(交換部品)

選択のガイド
選択のガイド
ニュートラルから分析までの研削用プランジャー:

     アルミニウム製プランジャーは非常に簡単に洗浄できます

     プラスチック製プランジャーは食器洗浄機での洗浄に適しています

     天然素材が好まれる場合は木製プランジャーが使用されます
22.725.0010プラスチック製
22.725.0011木製
22.725.0012アルミ製


Bottom sieves SM 100, SM 200, SM 300

スクリーン ステンレス製

選択のガイド
選択のガイド
利用可能な材料:

     ステンレス鋼:
     ほとんどのアプリケーションに適しています

     スチール1.0353:
     重金属の摩耗が問題になる場合に適しています。 g。 重金属含有量を分析する場合

     重金属を含まない研削ツールは、重金属含有量を分析するサンプルを準備するために特別に設計されています。 ただし、研削工具の摩耗を完全に回避することはできません。



ご注意ください:
わらのような繊維状物質は、ふるいの細孔を縦方向に通過する場合があります。 これは、使用したふるいの開口サイズよりも長い繊維がサンプルに残る可能性があることを意味します。
03.647.0312
梯形孔0.25 mm
03.647.0313
梯形孔0.50 mm
03.647.0314
梯形孔0.75 mm
03.647.0315
梯形孔1.00 mm
03.647.0316
梯形孔1.50 mm
03.647.0318
角孔2.00 mm
03.647.0319
角孔3.00 mm
03.647.0320
角孔4.00 mm
03.647.0321
角孔6.00 mm
03.647.0322
角孔8.00 mm
03.647.0024
角孔10.00 mm
03.647.0062
角孔20.00 mm


スクリーン 重金属コンタミ仕様 スチール1.0353

選択のガイド
選択のガイド
利用可能な材料:

     ステンレス鋼:
     ほとんどのアプリケーションに適しています

     スチール1.0353:
     重金属の摩耗が問題になる場合に適しています。 g。 重金属含有量を分析する場合

     重金属を含まない研削ツールは、重金属含有量を分析するサンプルを準備するために特別に設計されています。 ただし、研削工具の摩耗を完全に回避することはできません。



ご注意ください:
わらのような繊維状物質は、ふるいの細孔を縦方向に通過する場合があります。 これは、使用したふるいの開口サイズよりも長い繊維がサンプルに残る可能性があることを意味します。
03.647.0325
梯形孔0.25 mm
03.647.0326
梯形孔0.50 mm
03.647.0327
梯形孔0.75 mm
03.647.0328
梯形孔1.00 mm
03.647.0329
梯形孔1.50 mm
03.647.0331
角孔2.00 mm
03.647.0332
角孔3.00 mm
03.647.0333
角孔4.00 mm
03.647.0334
角孔6.00 mm
03.647.0335
角孔8.00 mm
03.647.0359
角孔10.00 mm


Accessories SM 100, SM 200, SM 300

サイクロンキット SM 200 / SM 300 用

22.020.0004吸引式サイクロンキット広口ビン500mL付(別途産業用掃除機が必要です)
22.935.0024Cyclone unit incl. collecting receptacle, 26 litre (to be used with industrial vacuum cleaner)
22.748.0005産業用掃除機, 230 V, 50/60 Hz
(other electrical versions and spare filter bags available upon request)
22.523.0002広口ビン 蓋付 500mL 10本組
22.001.0001広口ビン用ホルダ 1 / 2 / 5 L
05.239.0011試料ビン 1L ( 22.001.0001と使用)
05.239.0010試料ビン 2L ( 22.001.0001と使用)
05.239.0009試料ビン 5L ( 22.001.0001と使用)
22.003.0014受器ステンレス製 5L アダプタ付


試料受器

22.003.0008少量試料用捕集キット 広口ビン2本付(250/500 mL)
22.523.0001広口ビン 蓋付 250mL 10本組
22.003.0007サンプル受器 5L ステンレス製
22.003.0010Collecting receptacle, 26 litres, plastic, incl. adapter and filter hose
22.187.0006新リングフィルタ 5L受器用 ステンレス製
22.748.0001ダストフィルタ取付金具2個組 ダストフィルタ5枚組
22.524.0002ダストフィルタのみ 25枚組
22.187.0007カバーフィルタ 5L受器用(フランジ付)


回転刃(交換部品)

22.908.0001Reversible cutting tips, tungsten carbide, for 6-disc rotor, 10 pieces
22.151.0004Cutting plates, stainless steel, for parallel section rotor, 1 set (3 pieces)
22.151.0006Cutting plates, steel 1.1740, for parallel section rotor, 1 set (3 pieces)for grinding without heavy-metal contamination
重金属コンタミ防止用


固定刃

22.152.0003Double acting cutting bars, stainless steel, 1 set (3 pieces) for SM 200 / SM 300
22.152.0005Double acting cutting bars, steel 1.1740,
1 セット(3本組)
for SM 200 / SM 300for grinding without heavy-metal contamination


Additional items SM 100, SM 200, SM 300

22.225.0002ロータ取付具
22.111.0003Gasket for door SM 100 / SM 200 / SM 300, 1 piece

Cutting Mill SM 300 316L, foodGrade



Cutting Mill SM 300 316L, foodGrade

Cutting Mill SM 300 316L complete with collecting receptacle, 5 litres (316L) and base frame with wheels
(please order rotor, hopper and bottom sieve separately)
20.729.0010SM 300, 220–230 V, 50/60 Hz, 回転数調整用周波数変換器付き, housing and double acting cutting bars of steel 316L, foodGrade
20.729.0011SM 300, 220–230 V, 50/60 Hz, 回転数調整用周波数変換器付き, housing of steel 316L, foodGrade, double acting cutting bars of FDA certified steel, foodGrade
他の電源仕様については応相談


Rotor, steel 316L, foodGrade

22.608.0037Parallel section rotor, cutting plates of steel 316L, foodGrade
22.608.0038Parallel section rotor, cutting plates of FDA certified steel, foodGrade


ホッパー

22.408.0005Long stock hopper (316L) with PTFE plunger for SM 300 316L, foodGrade
02.785.0044PTFE plunger


Bottom sieves SM 300 316L, foodGrade

Bottom sieves of steel 316L, foodGrade

03.647.0495角孔, 2.00 mm
03.647.0530角孔, 4.00 mm
03.647.0496角孔, 6.00 mm
03.647.0531角孔, 8.00 mm
03.647.0532角孔, 10.00 mm
03.647.0533角孔, 20.00 mm
03.647.0534Slotted holes, 3.00 mm


Accessories SM 300 316L, foodGrade

Cyclone-suction-combination for SM 300 316L, foodGrade

22.020.0006Cyclone unit (316L) incl. 1 sample bottle 500 ml
(to be used with industrial vacuum cleaner)
22.020.0009Cyclone unit (316L) incl. collecting receptacle, 30 litres, steel 316L and carriage for collecting receptacle (to be used with industrial vacuum cleaner)


試料受器

22.003.0016Collecting receptacle, 5 litres, steel 316L, foodGrade
22.003.0017Collecting receptacle, 30 litres, steel 316L, foodGrade
22.906.0002Carriage for collecting receptacle 30 litres


Accessories for parallel section rotor

22.151.0009Cutting plates, steel 316L, for parallel section rotor, 1 set (3 pieces)
22.151.0008Cutting plates, FDA certified steel, for parallel section rotor, 1 set (3 pieces)


固定刃

22.152.0011Double acting cutting bars, steel 316L, 1 set (3 pieces) for SM 300 316L, foodGrade
22.152.0010Double acting cutting bars, FDA certified steel, 1 set (3 pieces) for SM 300 316L, foodGrade


Additional items SM 300 316L, foodGrade

99.200.0014IQ/OQ 検査書SM 300
