遊星ボールミル PM 200

お見積りは無料です!

各商品の「注文データ&見積依頼」のタブを開いて、お見積りご希望の商品にマークを入れると、見積カートに商品が入ります。商品右欄にマークをいれ、カートに入れると見積依頼リスト作成画面に進みます。コンタクトフォームに必要事項をご記入いただき送信すると、弊社担当者から折り返しお見積りをお送りいたします。

お問い合わせ

必要なアイテムがわからない、または一般的な見積もりを希望する場合は、こちらをご覧ください。

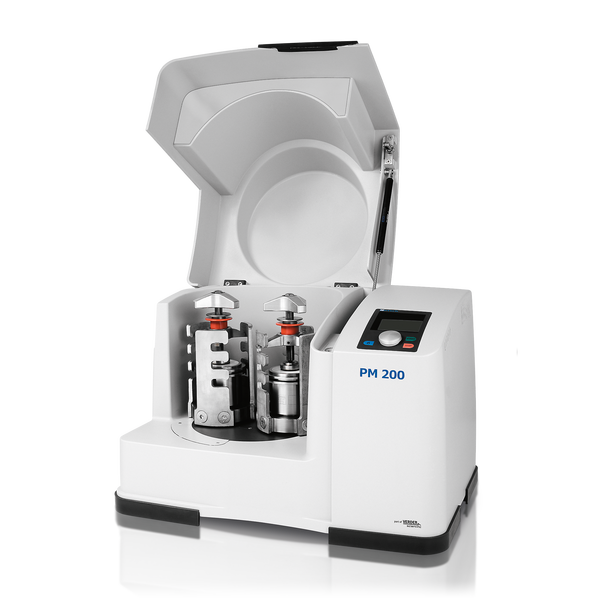

遊星ボールミル PM 200

(粉砕ジャーとボールは含まれていません)
20.640.0001
PM 200自転台2個、公自回転比 1 : -2
他の電源仕様については応相談


Accessories Planetary Ball Mills

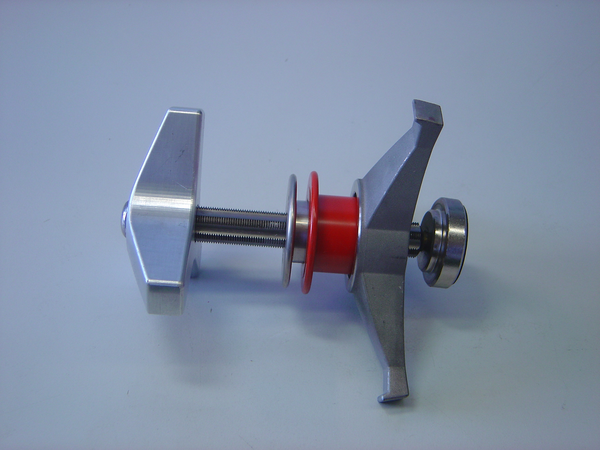

22.661.0005Clamping unit
03.025.0178Adapter for stacking grinding jars 50 ml - 80 ml

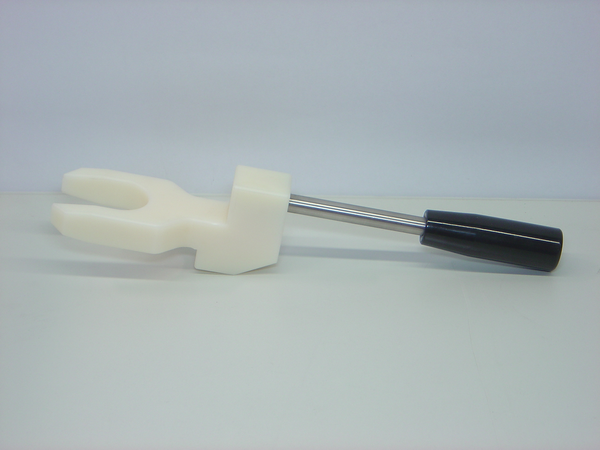

02.728.0048Counter aid for sun wheel PM 100, PM 200 and PM 400
03.486.0062Opening aid for clamping unit of planetary ball mills

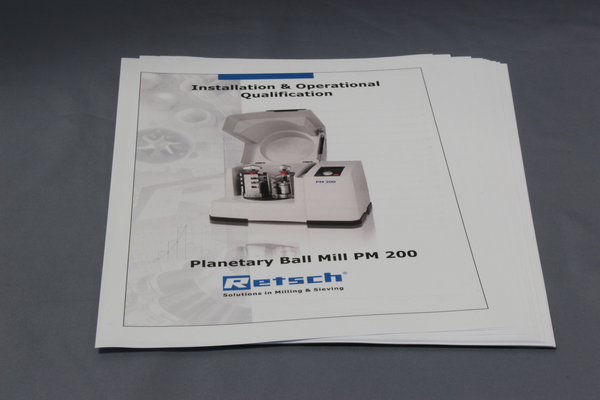

99.200.0008IQ/OQ 検査書PM 200


Grinding jars EasyFit

(grinding jars EasyFit are suitable for all planetary ball mills)


Hardened stainless steel

01.462.023912 mL
01.462.024025 mL
01.462.051650 mL
01.462.051780 mL
01.462.0518125 mL


タングステンカーバイド製

01.462.049450 mL
01.462.049580 mL
01.462.0527125 mL


メノウ製

01.462.050950 mL
01.462.051180 mL
01.462.0515125 mL


アルミナ製

01.462.050750 mL
01.462.0512125 mL


ジルコニア製

01.462.050850 mL
01.462.051080 mL
01.462.0513125 mL


Accessories for grinding jars EasyFit for wet grinding, grinding with inert atmosphere and Mechanical Alloying (MA)

Aeration lids (incl. inlay)

22.107.0613for grinding jars EasyFit 50 ml - 125 ml, hardened stainless steel
22.107.0616for grinding jars EasyFit 50 ml - 125 ml, tungsten carbide
22.107.0617for grinding jars EasyFit 50 ml - 125 ml, agate
22.107.0615for grinding jars EasyFit 50 ml - 125 ml, zirconium oxide
22.864.0001Spare valve set for aeration lids M8x1


Inlay for aeration lid

03.474.0225for grinding jars EasyFit 50 ml - 125 ml, hardened stainless steel
03.474.0207for grinding jars EasyFit 50 ml - 125 ml, tungsten carbide
03.474.0208for grinding jars EasyFit 50 ml - 125 ml, agate
03.474.0206for grinding jars EasyFit 50 ml - 125 ml, zirconium oxide


Safety closure devices

22.867.0011for grinding jars EasyFit 50 ml - 125 ml
02.486.0055Opening aid for safety closure device


Gaskets for grinding jars EasyFit

O-rings

05.114.0086O-ring for 12 ml grinding jar EasyFit
05.114.0085O-ring for 25 ml grinding jar EasyFit
05.114.0056O-ring for 50 ml - 125 ml grinding jars EasyFit


粉砕ボール

選択のガイド
選択のガイド
Grinding balls are available in different diameters. The rule of thumb is: for efficient milling the ball should be at least 3 times larger than the largest particle in the sample. To avoid abrasion and wear it is essential to only use balls with identical diameter.

The number of grinding balls depends on the jar volume used. The document “Grinding Jar Ball Charge” in the Downloads section provides details about usable volumes, maximum feed sizes and correct filling of the jars with grinding balls for dry and wet milling as well as cell disruption.

Grinding jars and grinding balls should always be made of the same material.

Available materials:
  • Hardened steel (density 7.8 g/cm3; hardness ≤ 235 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Stainless steel (density 7.7 g/cm3; hardness ≤ 245 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Tungsten carbide (density 14.8 g/cm3; hardness 93.6 HRA; high abrasion resistance)
    used for grinding very hard, brittle sample materials. By using tungsten carbide, contamination of the sample with iron is prevented.

  • Agate (density 2.6 g/cm3; hardness 6.5 – 7 Mohs, low abrasion resistance)
    a highly pure natural material suitable for pulverizing soft to medium-hard or fibrous samples. Due to its low-density agate is suitable for gentle grinding processes with low energy input.

  • Sintered aluminum oxide (density 3.8 g/cm3; hardness 1600 HV 0.5, medium abrasion resistance) is a ceramic material suitable for grinding soft to medium-hard or fibrous samples. It is mainly used for heavy-metal-free grinding processes.

  • Silicon nitride (density 3.6 g/cm3; hardness 1600 HV, high abrasion resistance) is a ceramic material suitable for grinding medium-hard to hard samples. Due to its low density silicon nitride is used for gentle grinding processes with low energy input. Thanks to the high abrasion resistance of the material it is also highly suitable for ultrafine grinding.

  • Zirconium oxide (density 6.05 g/cm3; hardness 1250 HV, high abrasion resistance)
    ceramic material suitable for pulverizing medium-hard to hard and fibrous samples. It is typically used for heavy-metal-free grinding processes or applications which aim at ultrafine particle sizes.

Please note:

The grinding tool material should be harder than the sample. For further information check the “Material Analyses of Equipment & Accessories” document in the Downloads section.


硬化鋼製

05.368.0029Ø 5 mm
05.368.0030Ø 7mm
05.368.0059Ø 10 mm
05.368.0032Ø 12mm
05.368.0108Ø 15mm
05.368.0033Ø 20 mm


ステンレス製

22.455.0010Ø 2 mm, 500 g (約 110 mL)
22.455.0011Ø 3 mm 500 g (約 120 mL)
22.455.0002Ø 3 mm, 200 個 (約 6 mL)
22.455.0001Ø 4 mm, 200 個 (約 14 mL)
22.455.0003Ø 5 mm, 200個 (約 25 mL)
05.368.0034Ø 5 mm
05.368.0035Ø 7mm
05.368.0063Ø 10 mm
05.368.0037Ø 12mm
05.368.0109Ø 15mm
05.368.0062Ø 20 mm


タングステンカーバイド製

22.455.0006Ø 3 mm, 200 個 (約 6 mL)
22.455.0005Ø 4 mm, 200 個 (約 14 mL)
22.455.0004Ø 5 mm, 200個 (約 25 mL)
05.368.0038Ø 5 mm
05.368.0039Ø 7mm
05.368.0071Ø 10 mm
05.368.0041Ø 12mm
05.368.0110Ø 15mm
05.368.0070Ø 20 mm


メノウ製

05.368.0024Ø 5 mm
05.368.0025Ø 7mm
05.368.0067Ø 10 mm
05.368.0027Ø 12mm
05.368.0111Ø 15mm
05.368.0028Ø 20 mm


アルミナ製

05.368.0019Ø 5 mm
05.368.0021Ø 10 mm
05.368.0112Ø 15mm
05.368.0054Ø 20 mm


ジルコニア製

32.368.00050.1 mm Ø, 0.5 kg (約 135 mL)
32.368.00030.5 mm Ø, 0.5 kg (約 135 mL)
32.368.00041 mm Ø, 0.5 kg (約 135 mL)
05.368.00892 mm Ø, 0.5 kg (約 135 mL)
05.368.00903 mm Ø, 0.5 kg (約 140 mL)
22.455.0007Ø 3 mm, 200 個 (約 6 mL)
22.455.0009Ø 5 mm, 200個 (約 25 mL)
05.368.0146Ø 7mm
05.368.0094Ø 10 mm
05.368.0096Ø 12mm
05.368.0113Ø 15mm
